Styling API

Styling features in Horizon allows users to define how features are displayed. It includes filtering, colorizing, changing geometry, changing models, etc.

It it composed of three main components:

  • Features and attributes, that come from a vector data layer.
  • Representations, that are rendering primitives (such as extruded boxes, points, heatmaps, etc.) that expose properties defining how they are displayed (such as color, font size, etc.).
  • Styling scripts, which can read feature attributes, and set properties in representations. This is the main styling mechanism, and will be described here.

Representation properties

Each representation has a set of predefined properties (height, colour, etc). A property can have a name and a default value. The name declared in the property is the name used in styling scripts with the set instruction. Thus, a property must have a name in order to be usable in scripts. An unnamed property or a named property not set in a script will use its default value.

A name can be duplicated among several properties but only if the properties are of the same type. This can be useful to set properties of different representations quickly (For instance, set "color" = #f00 can set a text colour and a stem colour if the colour property is named color in both representations). Naturally, names can also be used to explicitly dissociate properties of different representations (For instance, having properties text_color and stem_color).

Non-scalar properties

The set instruction only allows for setting scalar values. Therefore, when naming a non-scalar property, such as vectors, a virtual property is created for each component of the vector from the given name.

For example, with a Vec3fProperty named world_offset, we have the following names usable in the scripts: world_offset_x, world_offset_y, world_offset_z.

3D Tiles properties

Contrarily to typical vector representations, 3D Tiles only have a single property, whose name is not configurable: color.

Palettes

The styling script supports colourization of features using a palette. A palette can be of two types: numeric or per label. The second type is a palette that maps string values to colors. Palettes are declared in the scene model with a name used for referencing the palette in the script.

Palettes are then used in the script with the colorize() function.

Evaluation context

Styling scripts are evaluated for each feature, top to bottom. An evaluation context comprises the set of properties that have being set thus far in the execution of the styling script (which is empty when starting evaluation), and the RNG state of each feature (see below).

Further on, we will see some instructions that control the execution of the script, and the evaluation context.

Comments

Styling scripts support single line comments by typing double slashes (//) on a line: everything after // is ignored, except when inside string literals.

// This is a comment.
emit 0;

Types

Styling scripts use dynamic typing, with the same types as attributes.

Virtual types

Virtual types don’t exist in the formal type system, but they are a way some operators interpret values.

Virtual type Acts like…
Color 64-bit unsigned integer, with only the first 32 bits used

Implicit conversions

null Boolean Number 64-bit integer String
To number 0 0/1 - May lose precision NaN
To integer 0 0/1 floor Careful on signedness mismatch 0
To boolean false - false if 0 or NaN, true otherwise false if 0, true otherwise false if empty, true otherwise
To string empty string empty string empty string empty string -

Expressions

Operators precedence

Precedence Operator Explanation
1 () Function call, sub-expression
2 ==, !=, <, <=, >, >= Comparison operators
3 not Logical negation
4 and Logical and
5 or Logical or

For example the following expression:

not 1 < 2 or 3 == 4 and 5

would be parsed as

(not (1 < 2)) or ((3 == 4) and 5)

Comparisons

Comparing two values happens as follows:

  • If both values are of type string or (un)signed 64-bit integers, their values are simply compared normally. Note that strings are compared lexicographically.
  • For mixed types or other types, both values are first implicitly converted to numbers before being compared.

Logical operators

The not operator implicitly converts its value to a boolean, and inverts it.

The or operators returns the first values that would implicitly convert to true.

The and operator returns the first value that would implicitly convert to false, or true if none do.

not null                // true
"" or "hello" or 5      // "hello"
null and 18             // null

(Note that null in the examples above stands for an expression whose result value is null. Explicitly writing null in a script isn’t supported.)

Constant folding

As an optimization, most expressions with only constant values are evaluated at compile time. This includes composite values constructed from function calls.

add(mul(3, 5), 2)                       // compiled as `17`
alpha(rgb(1, 0.5, 0), attr("alpha"))    // compiled as alpha(#ff8000, attr("alpha"))

Values

Literals

Boolean literals

true and false. Easy.

Number literals

Integer literals are simply a bunch of digits. Hexadecimal values can be used by prefixing the literal with 0x. A minus sign can be appended to decimal literals to make them negative.

Floating point literals use a period to separate the decimal and fractional parts.

53    -57    0x6edf    89.63    -0.5

Color literals

Color literals use the hexadecimal notation #rgb or #rgba or #rrggbb or #rrggbbaa. They represent values in the sRGB color space. The alpha channel is interpreted linearly.

Hexadecimal numbers (0xabcdef) are interpreted differently than special color hexadecimal values. Thus, 0xffff00ff yields a different colour than #ffff00ff. So do not use the hexadecimal integer literal notation for colors, and vice-versa.

String literals

String literals are delimited by double quotes ". They are span multiple lines, in which case the newline characters are part of the string. They can include UTF-8 characters. The following escape sequenced are available.

Escape sequence Description
\" Double quote
\\ Backslash
\n Line break
\t Tabulation
\u{hhhh} Unicode code point, hexadecimal. For example \u{e9} is é, \u{6587} is 文.

Uniforms

Uniforms are read-only values not known at compile time. They can be used to provide data to the styling script from the layers. They are accessed using the uniform("name") syntax, where the name is a string literal.

Uniform name Context Type Description
tile_z Vector tiles uint64 Depth of the tile in the tiles pyramid
tile_depth 3D Tiles uint64 Depth of the tile in the tree hierarchy of the dataset
set "color" = hsl(mul(uniform("tile_z"), 100), 0.5, 0.5);

Properties

The current value of a property can be retrieved in an expression using the prp("name") syntax, where the name is a string literal.

The returned value is the last value set in the current evaluation context, or the default value coming from the scene model if the property has not been written to by the script yet.

set "roof_color" = hsl(rand_unif_f(0, 360), 0.5, 0.5);
set "base_color" = darken(prp("roof_color"), 0.5);

Enumerations

Some enumerations defined in the protocol are usable in styling scripts. Their values are unsigned integers. They are accessible through the enum("EnumName", "VARIANT_NAME") directive, which takes two string literal parameters.

The enumerations that can be used in a script are listed here.

set "alignment" = enum("TextAlignment", "LEFT_ALIGNED")

Attributes

Attribute values can be retrieved using the attr("name") syntax, where the name is a string literal referring to an attribute declared in the layer. They are read-only and per-feature.

Set instruction

The set instruction assigns a value given by its associated expression to a property in the current evaluation context. The given property name must be a string literal.

set "color" = #F00;
set "secondary_color" = darken(prp("color"), 0.5);
set "name" = "Building 1";

Discard instruction

The discard instruction stops the current evaluation context. It can be used to filter out a feature.

if (not attr("is_visible")) {
    discard;
}

Emit instruction

The emit instruction creates a representation instance using the current evaluation context, and stops execution.

It uses as argument an expression evaluating to an integer or a string whose value is the representation ID or name.

emit "simple_extrusion";
emit 5;
emit attr("repr_name");
emit add(attr("sprite_id"), 10000);

The most efficient way of emitting representations is using a literal value. Using a dynamic value like an attribute is the slowest method, but sometimes cannot be avoided.

Only one representation can be emitted at a time, per evaluation context. For emitting more, use the fork instruction.

Fork instruction

The fork instruction duplicates the current evaluation context and executes it in its instructions block. Execution of the duplicated context will stop and the end of the block. The parent evaluation context continues ignoring the block.

This can be used to emit multiple representations, possibly with different property values.

It is allowed to fork inside another fork.

set "color" = "red";

fork {
    emit "repr1"; // color = red
}

fork {
    set "color" = "blue";
    emit "repr2"; // color = blue
}

fork {
    // Nothing emitted here, execution stops for this context
}

emit "repr3"; // color = red

Branch instructions

Branch instructions can be used to conditionally execute instruction blocks. They use an expression whose result is implicitly converted to a boolean to decide whether the block is executed or not.

The available instructions are if, elif, and else.

else does not use a condition expression.

Braces are NOT optional.

if (attr("type") == "Monument") {
    emit "monument_repr";
}
elif (attr("type") == "Tree" and attr("height") >= 5) {
    emit "tree_repr";
}
else {
    discard;
}

Built-in functions

Functions can be used in any expression. Unless specified otherwise, the arguments are implicitly cast to their target type.

Numeric operations

Function Description
abs(a, b: number) -> number Absolute values
add(a, b: number) -> number Addition (a + b)
sub(a, b: number) -> number Subtraction (a - b)
neg(a: number) -> number Negation (-a)
mul(a, b: number) -> number Multiplication (a x b)
div(a, b: number) -> number Division (a / b)
inv(a: number) -> number Negation (1 / a)
mod(a, b: number) -> number Remainder of the floored division a / b
lerp(a, b, t: number) -> number Linearly interpolates between a and b using t
round(a: number) -> number Rounding to nearest integer
floor(a: number) -> number Rounding down
ceil(a: number) -> number Rounding up
min(a, b: number) -> number Minimum of a and b
max(a, b: number) -> number Maximum of a and b
is_nan(a: any) -> boolean Checks whether a is null or NaN when implicitly cast to a number

Random number generation

Each features in each evaluation context has its own random number generator (RNG) state. The RNG is seeded with the feature ID to ensure reproducibility across tiles of different zoom levels. This means that a feature in a dataset will always be stylized the same way for a given styling script.

For features without IDs the engine uses a best effort strategy to generate visually acceptable randomness, but stability across tiles is not guaranteed.

All random numbers are generated on 32 bits.

Function Description
rand_norm_f(mean, std: number) -> number Random real number following a normal distribution
rand_norm_i(mean, std: number) -> number Random integer number following a normal distribution
rand_norm_u(mean, std: number) -> number Random unsigned unsigned integer number following a normal distribution
rand_unif_f(min, max: number) -> number Random real number following a uniform distribution, upper bound is exclusive
rand_unif_i(min, max: number) -> number Random integer number following a uniform distribution, upper bound is exclusive
rand_unif_u(min, max: number) -> number Random unsigned integer number following a uniform distribution, upper bound is exclusive

Color manipulation

Function Description
rgb(r, g, b: number) -> color Creates a color from red, green, blue components (each in [0, 1]). Alpha is fully opaque.
rgba(r, g, b, a: number) -> color Like rgb, but with alpha (opacity) in [0, 1].
hsl(h, s, l: number) -> color Creates a color from hue [0, 360], saturation, and luminance [0, 1]. Alpha is fully opaque.
hsla(h, s, l, a: number) -> color Like hsl, but with alpha (opacity) in [0, 1].
alpha(color: color, alpha: number) -> color Sets the alpha (opacity) of a color. alpha is in [0, 1].
lighten(color: color, amount: number) -> color Lightens the color by amount (0 = no change, 1 = white, -1 = black). Opposite of darken.
darken(color: color, amount: number) -> color Darkens the color by amount (0 = no change, 1 = black, -1 = white). Opposite of lighten.
brighten(color: color, amount: number) -> color Brightens the color by amount (0 = no change, -1 = black, 1 = double brightness).
saturate(color: color, amount: number) -> color Saturates the color by amount (0 = no change, -1 = fully desaturated). Opposite of desaturate.
desaturate(color: color, amount: number) -> color Desaturates the color by amount (0 = no change, 1 = fully desaturated). Opposite of saturate.
invert_color(color: color) -> color Inverts the RGB channels of the color.
mix_colors(from_color: color, to_color: color, t: number) -> color Interpolates between two colors in OkLab space by t in [0, 1].
rotate_hue(color: color, amount: number) -> color Rotates the hue of the color by amount degrees in HSV space.
colorize(palette: string_literal, value: any) -> color Maps a value to a color using a named palette.

Strings manipulation

Function Description
fmt(format: string_literal, arg0, arg1, ...: any) -> string Builds a string. Accepts a variable number of arguments of any type. The first argument is a string literal that describes the format, which follows the {fmt} syntax.

Example:

fmt("{} has {} inhabitants.", attr("city"), attr("population"));

Typing & utilities

Function Description
is_null(expr: any) -> boolean Returns whether a value is strictly null. Useful for checking missing attributes.
value_or(a: any, b: any) -> any Returns the first value if not null, otherwise returns the second value.
to_int(expr: any) -> int Converts a value to an integer using the corresponding attribute transform.
to_uint(expr: any) -> uint Converts a value to an unsigned integer using the corresponding attribute transform.
to_number(expr: any) -> number Converts a value to a real number using the corresponding attribute transform.
to_string(expr: any) -> string Converts a value to a string using the corresponding attribute transform.
to_boolean(expr: any) -> boolean Converts a value to a boolean using the corresponding attribute transform.
to_color(expr: any) -> color Converts a value to a color using the corresponding attribute transform.
mapbox_typeof(expr: any) -> string Returns a string describing the value category: “null”, “boolean”, “number”, or “string”. This doesn’t fully describe the typing system, but is meant to be compatible with Mapbox types.

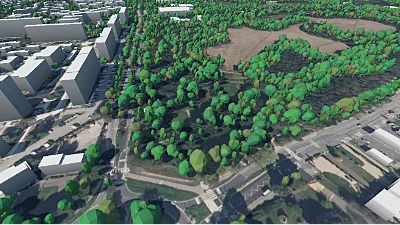

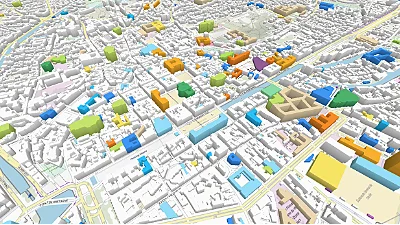

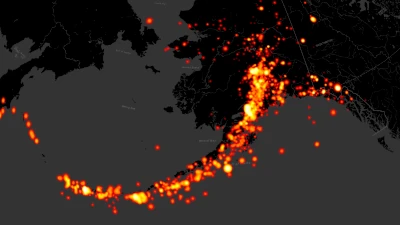

Examples

Grammar

Values

ESCAPED_CHAR    :=   '\n' | '\t' | '\\' | '\"' | '\u{' HEXDIGIT+ '}'
string_lit      :=   '"' (CHAR | ESCAPED_CHAR)* '"'
uint_lit        :=   ('0x' HEXDIGIT+) | DIGIT+
sint_lit        :=   '-'? DIGIT+
real_lit        :=   '-'? ('.' DIGIT+ | DIGIT+ ('.' DIGIT+))
numeric_lit     :=   uint_lit | sint_lit | real_lit
hex_color_lit   :=   '#' HEXDIGIT{3,4,6,8}
color_lit       :=   hex_color_digit
literal         :=   string_lit | numeric_lit | color_lit
attr            :=   'attr' '(' string_lit ')'

Functions

function_name  :=    CHAR+
function_call  :=    function_name '(' expr (',' expr)* ')'
colorize_call  :=    'colorize' '(' string_lit ',' expr ')'   // Special case, ugh...
fmt_call       :=    'fmt' '(' string_lit ',' expr ')'   // Special case, ugh...
function       :=    function_call | colorize_call | fmt_call

Expressions

expr        := expr_1 ('or' expr_1)*
expr_1      := expr_2 ('and' expr_3)*
expr_3      := 'not' expr_3 | expr_4 (('<' | '>' | '<=' | '>=' | '==' | '!=') expr_4)?
expr_4      := '(' expr ')' | function | literal | attr

Instructions

block          :=   instr*
b_block        :=   '{' block '}'
instr          :=   discard | emit | fork | branch | set
discard        :=   'discard' ';'
emit           :=   'emit' expr ';'
fork           :=   'fork' b_block
branch         :=   branch_if (branch_elif)* (branch_else)?
branch_if      :=   'if' '(' expr ')' b_block
branch_elif    :=   'elif' '(' expr ')' b_block
branch_else    :=   'else' b_block
set            :=   'set' string_lit '=' expr ';'
