3D Tiles

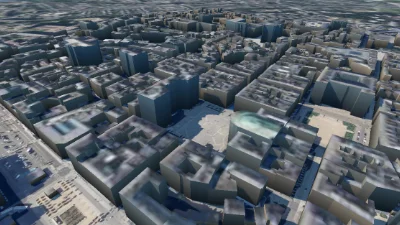

3D Tiles allow encoding large 3D datasets in a way that makes them easily streamed over a network, such as the Internet. They are typically used to display buildings and can cover whole cities or even regions.

3D Tiles tilesets can contain tiles of several types:

b3dm, i3dm, and (usually) cmpt tiles contain glTF models. The 3D models documentation gives specific details about the supported variants.

Each tileset comes with a scalar value governing how tiles are refined as the camera gets closer to them. This property is named max_screen_space_error and must be provided along with the tileset URL. (It is possible however to make the value slightly smaller or larger to adjust the refinement.)

To make the scene a bit more stable while the camera moves, it is possible to add some hysteresis to the refinement and unrefinement of the tiles, through the refinement_hysteresis property. A value of 0 means no hysteresis: the tiles will be loaded and unloaded exactly when crossing the max screen-space error threshold. A higher value delays loading and unloading the tiles by adding a “dead zone” around the max screen-space error threshold.. Typical values range between 0.1 and 0.5.

It is possible to set a linear transformation, which is applied to every tile, to the layer. But it is not needed for most tilesets, so usually the identity should be used.

3D Tiles can be styled, see here for details.

Supported extensions

3DTILES_content_gltf: makes it possible to define a tile’s content using a glTF or GLB file. This extension isn’t required for i3dm tiles which natively supports embedded or external glTFs.

SIRADEL_range_request: to serve 3D Tiles datasets using HTTP range requests, thus reducing the number of files on servers.
